How to Group Radio Buttons in Excel (2 Simple Methods)

In this article, we will cover 2 simple methods to group radio buttons in Excel.

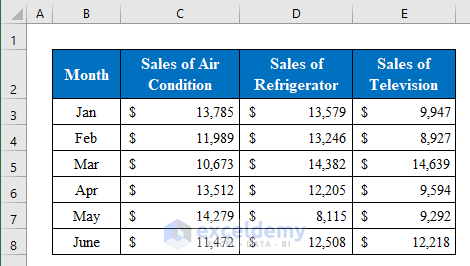

Suppose we have the following dataset of a Company’s monthly Sales of Air conditioners, Refrigerators, and Televisions.

Let’s create and group some radio buttons from this data.


Method 1 – Using Form Controls to Create and Group Radio Buttons

Using the form controls from the “Developer” tab, we can easily create and group radio buttons.

Step 1:

We’ll start by adding a radio button to our worksheet.

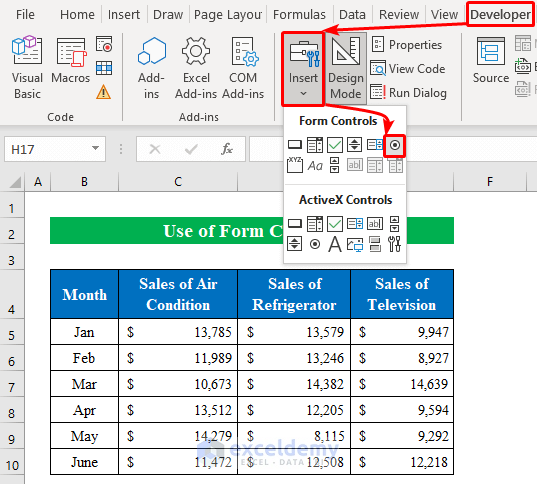

  • Go to the “Developer” tab, click “Insert“, and select the “Radio Button” icon.

Use Form Controls to Create and Group Radio Buttons in Excel

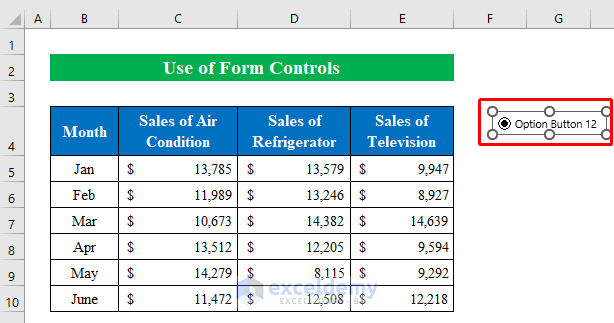

  • Select a cell and draw the button.

  • With the button selected, press Ctrl+D to make multiple buttons.

Use Form Controls to Create and Group Radio Buttons in Excel

  • Position them, and our multiple radio buttons are created.

Let’s group these buttons.

Use Form Controls to Create and Group Radio Buttons in Excel

Read More: Radio Button in Excel Without Macro (Insert, Copy, Group & Delete)


Step 2:

  • Go to the “Developer” tab, click on “Insert” and then the “Group” icon.

Use Form Controls to Create and Group Radio Buttons in Excel

  • Draw a border outside the buttons to group them.

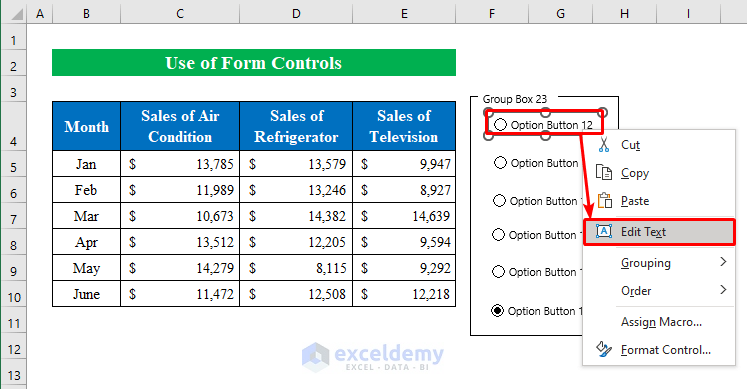

  • Select a button and right-click on it.
  • From the options, click “Edit Text”.

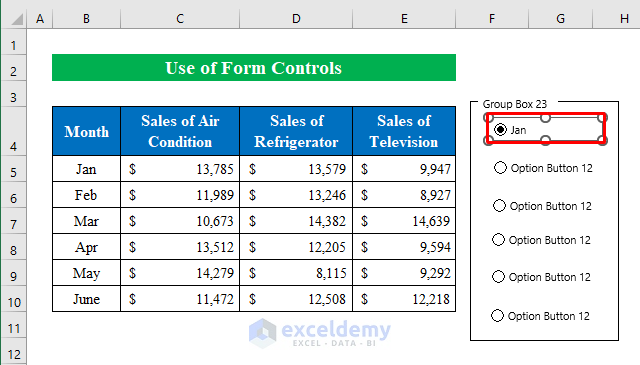

  • Enter “Jan” for the first button.

Use Form Controls to Create and Group Radio Buttons in Excel

  • Name all the buttons in the group in the same way.

  • Using the process above, create another group of radio buttons like in the image below.

Use Form Controls to Create and Group Radio Buttons in Excel


Step 3:

Now we links cells for each group of radio buttons.

  • Select a button, right-click on it, and click “Format Control” from the options.

Use Form Controls to Create and Group Radio Buttons in Excel

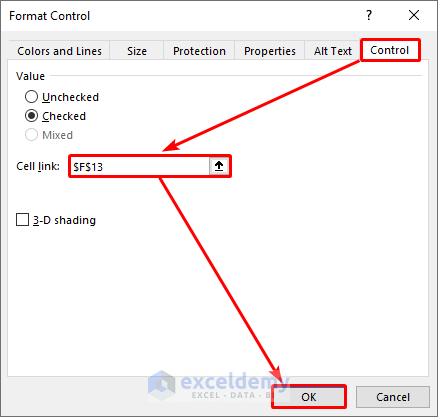

  • In the “Format Controls” window that opens, choose a cell to link with the button.
  • Click OK to continue.

We have successfully linked a cell (F13) with the grouped radio button.

To check that the button works correctly:

  • Click on another button and it will show the number “3”, as the radio button is in the 3rd position.

Use Form Controls to Create and Group Radio Buttons in Excel

  • In the same way, link another cell (H13) with the other group of radio buttons.

Use Form Controls to Create and Group Radio Buttons in Excel

Read More: How to Insert Excel VBA Radio Button Input Box


Step 4:

Finally, we will link these groups of options buttons with our dataset.

  • Select a cell (B13) to return the month’s name when we press the corresponding radio button from the group.
  • Enter the following formula:
=INDEX($B$5:$B$10,$F$13)

The INDEX function returns a value or reference from the given table. Here, $B$5:$B$10 is the array and the row number is $F$13, which will provide a month name according to the cell reference value.

Use Form Controls to Create and Group Radio Buttons in Excel

  • Press Enter and the month name will be returned.

To check whether the formula is working properly or not:

  • Click any radio button and observe the changes.

Use Form Controls to Create and Group Radio Buttons in Excel

Now, we will collect the sales value from the dataset by pressing the radio button from the other group.

  • Select a cell (C13) and enter the following formula:
=INDEX($C$5:$E$10,ROWS($C$4:E4),$H$13)

Use Form Controls to Create and Group Radio Buttons in Excel

  • Press Enter to return the desired output.

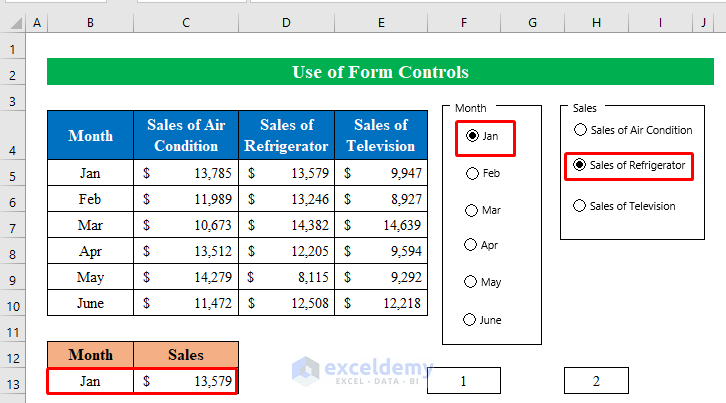

We have successfully grouped the radio button and used them to gather information from the dataset.

Use Form Controls to Create and Group Radio Buttons in Excel


Method 2 – Using ActiveX Controls to Group Radio Buttons in Excel

A somewhat simpler solution to group radio buttons is to use ActiveX Controls.

Step 1:

  • Go to the “Developer” tab and click on the “Insert” icon.
  • Select “Radio or Option Button” from the “ActiveX Controls” list.

Utilize Activex Controls to Group Radio Buttons in Excel

  • Like for the previous method, draw the button in your chosen location in the worksheet.
  • With the button selected, press Ctrl+D to create multiple buttons.

Utilize Activex Controls to Group Radio Buttons in Excel

  • Place the buttons under the “Month” heading to group them.

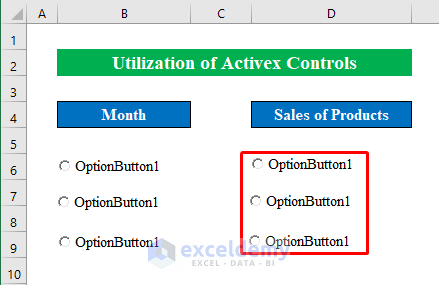

  • In the same fashion, create more buttons under the “Sales of Products” heading.

Utilize Activex Controls to Group Radio Buttons in Excel


Step 2:

Now we edit and group these radio buttons.

  • Select a button, right-click on it, and from the options press “Edit”.

Utilize Activex Controls to Group Radio Buttons in Excel

  • Enter “January”.

  • In the same way, edit all the button names.

Utilize Activex Controls to Group Radio Buttons in Excel

  • To group those, right-click on a button and select the “Properties” option.

Utilize Activex Controls to Group Radio Buttons in Excel

  • Set the “GroupName” property to “A”.
  • Similarly, for all the month’s buttons, change the group name to “A” to place the button in the same group.

  • Group the other buttons by using the “Properties” option in the same way.

  • Set the “GroupName” for the other buttons group to “B”.

Utilize Activex Controls to Group Radio Buttons in Excel

We have successfully grouped radio buttons in Excel.

How to Group Radio Buttons in Excel


Things to Remember

  • If you don’t see the “Developer” tab on the top ribbon, go to File > Options > Customized Ribbon and checkmark the “Developer” option to enable it.
